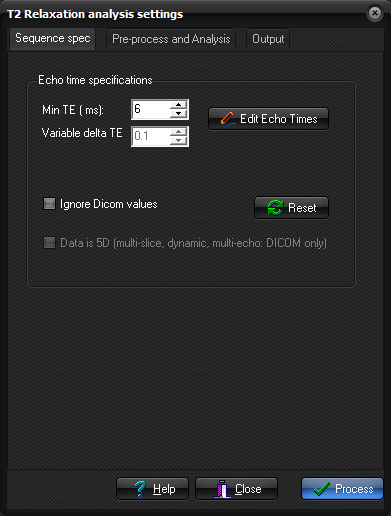

Sequence
specification tab
This tab is part of
the T2 Relaxation analysis settings dialog.
Here
you set the parameters relevant for the T2 curve fitting: Echo time
specifications: Min TE (ms): Selected if a constant echo spacing is used. Minimum TE
is the TE of the first echo and delta TE is the echo spacing of consecutive
echoes after the first echo. All TE values are in msec. If input data is dicom
and a variable increment in TE is detected, the deltaTE field is
changed to variable delta TE and disabled. The detected TE times are
then listed in the list visible by pressing the Edit Echo Times button Edit Echo Times: Displays the Echo time (TE) values dialog. The list of
currently used echo times. Can be edited by user and the modified values will
override the settings of the min/delta TE settings. Ignore Dicom values: Ignores any TE values detected in dicom header and use the one
specified in the list. Data is 5D
(multi-slice, dynamic, multi echo: DICOM only): Specifies that the input data should be interpreted as
multi-slice, multi-echo dynamic series. The output will then retain the
dynamic dimension and create one parametric (multi-slice) series per dynamic
time-point Related topics:
Echo
time (TE) values
|
|
