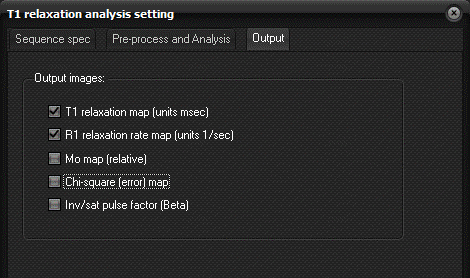

Output
tab
Specifies which output
images to generate from the relaxation analysis. Available images are:
T1 relaxation map: maps representing T1-relaxation times (in
units ms)
R1 relaxation rate
map: maps representing R1-relaxation
rates (in units 1/sec) where R1=1/T1
Mo map: relative equilibrium magnetization map. This
represents the fully recovered signal intensity in the respective sequences
Chi-square (error)
map: maps representing the
residual error between the input data and the fitted data
Inv/sat pulse factor (Beta): maps representing the effective value of the inversion
/saturation pulse. This value should have a nominal value of 1 of SR and 2 of
IR
